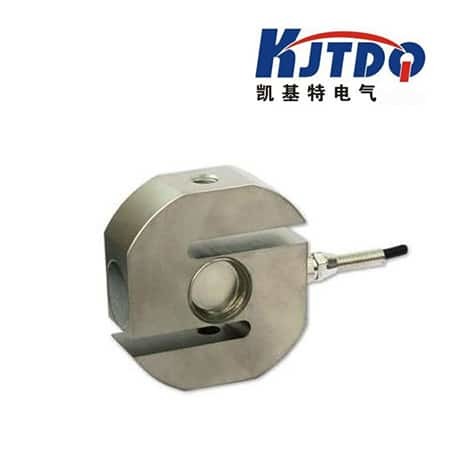

Weight Sensor

Weight Sensor
Send Inquiry
Product Code : 11000001
Brand Name : KJTDQ
Product Description

We are a leading and renowned organization, engaged in manufacturing and supplying Weight Sensor to our respected clients. This sensor operates by converting weight imposed on them to electrical signals. It contains beams or structural members that deform themselves by application of any weight. Also, it is well known for its high sensitivity as well as accurate outputs. Apart from this, Weight Sensor is available at a very reasonable rate keeping in mind budget of customers. Since inception of our organization, we are indulged in making use of advanced tools and techniques &  hence we assure optimum customer’s satisfaction.





Technical Specification

KJT-YLS005 Weight Sensor

Rated Output

2.0 ±0.02%mv/v

Zero Balance

±2% FS

Non-linearity

0.05%FS

Hysteresis

0.05%F.S

Repeatability

0.05%F.S

Creep(30min)

0.03%F.S

Temp Effect on Output

0.03%FS/10°C

Temp Effect on Zero

0.03%FS/10°C

Input Impedance

385 ±5

Wire Connection

Ex+:Red Ex-:Black; Output+:Green Output-:White

Output Impedance

350 ± 5

Insulation

5000 (100VDC)

Recommended Excitation

9- 12V

Maximum Excitation

15V

Compensated Temp Range

-10-+10

Operation Temp Range

-20-+60°C

Safe Overload

150%

Ultimate Overload

200%

Cable Size

5 x3cm

KJT-X101A Weight Sensor

Rated Output

2.0 ±10%mv/v

Zero Balance

2%F.S

Non-linearity

.02%FS

Hysteresis

0.02%F.S

Repeatability

0.02%F.S

Creep(30min)

0.03%F.S

Temp Effect on Output

0.03%FS/10t

Temp Effect on Zero

0.03%FS/10t

Input Impedance

410 ± 200

Wire Connection

Ex+:Red Ex-:Black; Output+:Green Output-:White

Output Impedance

350 ± 30

Insulation

5000M CI (100VDC)

Recommended Excitation

10V

Maximum Excitation

15V

Compensated Temp Range

-10-+40 *C

Operation Temp Range

-20-+65

Safe Overload

150%

Ultimate Overload

200%

Cable Size

04 x50cm

KJT-X601A Weight Sensor

Rated Output

2.0 ±10%mv/v

Zero Balance

2%F.S

Non-linearity

0.05%FS

Hysteresis

0.05%F.S

Repeatability

0.05%F.S

Creep(30min)

0.05%F.S

Temp Effect on Output

0.05%FS/10C

Temp Effect on Zero

0.015%FS/10C

Input Impedance

1050 ±10% at 23°C

Wire Connection

Ex+:Red Ex-:Black; Output+:Green Output-:White

Output Impedance

1050 ± 1% at 23°C

Insulation

1000M (5VDC)

Recommended Excitation

5V

Maximum Excitation

15V

Compensated Temp Range

-10-+70 °C

Operation Temp Range

-30-+80

Safe Overload

150%

Ultimate Overload

200%

Cable Size

01 x2cm

KJT-X301D Weight Sensor

Rated Output

2.0 ±10%mv/v

Zero Balance

2%F.S

Non-linearity

0.03%FS

Hysteresis

0.03%F.S

Repeatability

0.03%F.S

Creep(30min)

0.03%F.S

Temp Effect on Output

0.03%FS/10°C

Temp Effect on Zero

0.03%FS/10°C

Input Impedance

385 ±10% Ω

Wire Connection

Ex+:Red Ex-:Black; Output+:Green Output-:White

Output Impedance

350 ± 1Ω

Insulation

5000MΩ (100VDC)

Recommended Excitation

15V

Maximum Excitation

15V

Compensated Temp Range

-10-+60 °C

Operation Temp Range

-20-+80

Safe Overload

150%

Ultimate Overload

200%

Cable Size

5 x6cm

KJT-X901A Weight Sensor

Rated Output

2.0 ±0.02%mv/v

Zero Balance

±1% FS

Non-linearity

0.05%FS

Hysteresis

0.05%F.S

Repeatability

0.05%F.S

Creep(30min)

0.03%F.S

Temp Effect on Output

0.05%FS/10°C

Temp Effect on Zero

0.05%FS/10°C

Input Impedance

750 ±15 Ω

Wire Connection

Ex+:Red Ex-:Black; Output+:Green Output-:White

Output Impedance

700 ± 5Ω

Insulation

≥5000MΩ (100VDC)

Recommended Excitation

10V

Maximum Excitation

15V

Compensated Temp Range

-10-+40 °C

Operation Temp Range

-20-+65°C

Safe Overload

150%

Ultimate Overload

200%

Cable Size

5 x6cm
