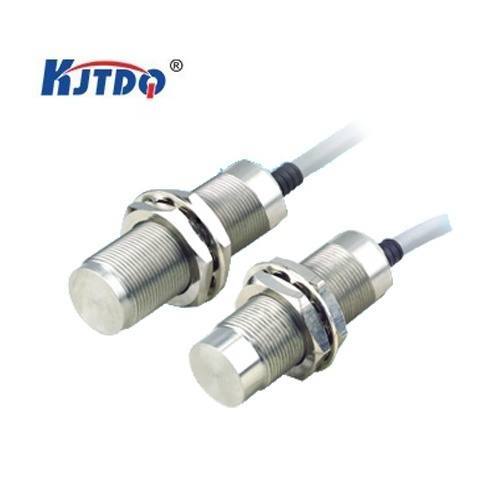

      Full Metal Housing Inductive Proximity Sensor

      Full Metal Housing Inductive Proximity Sensor
      Send Inquiry
      Product Code : 01060001
      Brand Name : KJTDQ
      Product Specifications
      • Product Type
      • M30 Full Metal Housing Proximity Sensors
      • Material
      • Nickel Brass Alloy
      • Output
      • NPN/PNP
      • Function
      • M30 Full Metal Housing Proximity Sensors
      • Usage
      • M30 Full Metal Housing Proximity Sensors
      • Accuracy
      • 2 %
      • Resolution
      • 10%
      • Voltage
      • 10-36VDC, 90-250VAC Siemens Volt (S )
      • Weight
      • 0-200 Grams (g)
      • Warranty
      • 24 months
      Product Description



      Back since year 2010, we are indulged in manufacturing and supplying quality assured Full Metal Housing Inductive Proximity Sensor to our respected clients. Housing material of this sensor is fabricated through high-grade stainless steel that is procured from credited vendors in market. It is used to detect metallic objects in its surroundings and it provides indication of any object’s presence by use of yellow LED. Apart from this, this sensor is a highly reliable product that always has been on position of top quality product by virtue of its excellent functionality as well as high corrosion resistance. In addition to this, Full Metal Housing Inductive Proximity Sensor is strictly tested on parameters of quality before its dispatch to deliver defect free products to our respected clients.



      Technical Specification

      M30

      Mounting

      F

      NF

      SN[mm]

      10mm

      15mm

      Power supply

      10-30VDC

      M30*50

      Housing size

      M30*45

      Thread size

      M30*1*45

      Output

      NPN/PNP NO/NC

      NO/NC

      Temperature drift

      ±10%

      Hysteresis

      1-20%

      Repeat accuracy

      3%

      Load current

      200mA

      Residual voltage

      2.5V

      Consumption current

      25mA

      Protection circuit

      Surge,short-circuit,reverse polarity

      Indicator

      Yellow LED

      Ambient temp.

      -25-70

      Ambient RH

      35-95%

      Frequency

      100 Hz

      Protection degree

      IP67

      Housing material

      Stainless steel

      Connection

      PUR Cable 2m/M12 connector

      M18

      Mounting

      F

      NF

      SN[mm]

      5mm

      8mm

      Power supply

      10-30VDC

      Housing size

      M18*45

      M18*50

      Thread size

      M18*1*45

      Output

      NPN/PNP NO/NC

      NO/NC

      Temperature drift

      ±10%

      Hysteresis

      1-20%

      Repeat accuracy

      3%

      Load current

      200mA

      Residual voltage

      2.5V

      Consumption current

      25mA

      Protection circuit

      Surge,short-circuit,reverse polarity

      Indicator

      Yellow LED

      Ambient temp.

      -25-70

      Ambient RH

      35-95%

      Frequency

      100 Hz

      Protection degree

      IP67

      Housing material

      Stainless steel

      Connection

      PUR Cable 2m/M12 connector

      M12

      Mounting

      F

      NF

      SN[mm]

      2mm

      4mm

      Power supply

      10-30VDC

      Housing size

      M12*45

      M12*50

      Thread size

      M12*1*45

      Output

      NPN/PNP

      NO/NC

      Temperature drift

      ±10%

      Hysteresis

      1-20%

      Repeat accuracy

      5%

      Load current

      200mA

      Residual voltage

      2.5V

      Consumption current

      25mA

      Protection circuit

      Surge,short-circuit,reverse polarity

      Indicator

      Yellow LED

      Ambient temp.

      -25-70

      Ambient RH

      35-95%

      Frequency

      300 Hz

      Protection degree

      IP67

      Housing material

      Stainless steel

      Connection

      PUR Cable 2m/M12 connector
