      Through Beam Photoelectric Sensor

      Through Beam Photoelectric Sensor
      Send Inquiry
      Product Code : 02030001
      Brand Name : KJTDQ
      Product Specifications
      • Product Type
      • DC M-12 Through Beam Photoelectric Sensor
      • Material
      • Nickel Plated Brass Alloy
      • Output
      • NPN/PNP
      • Function
      • DC M-12 Through Beam Photoelectric Sensor
      • Usage
      • DC M-12 Through Beam Photoelectric Sensor
      • Accuracy
      • 2 %
      • Resolution
      • 10%
      • Voltage
      • 10-36VDC, 90-250VAC Siemens Volt (S )
      • Weight
      • 0-200 Grams (g)
      • Warranty
      • 24 months
      Product Description

      Since inception of our company, we are involved in manufacturing and supplying quality assured Through Beam Photoelectric Sensor to our respected clients. It is equipped with a transmitter and a receiver that is placed opposite to each other. Transmitter emits infrared rays towards receiver and if any object is present in its surrounding then, object obstructs path of beam & output is activated. Apart from this, Through Beam Photoelectric Sensor is highly admired for its great performance as well as high sensitivity. Further, it can be even be used in highly polluted environment by virtue of its accurate internal functioning.





      Technical Specification

      M12

      Housing size [mm]

      M12*55

      Thread size [mm]

      M12*1*40

      Mode

      Through beam

      SN

      4m

      Light source

      Infrared LED 880nm

      Output

      NPN/PNP NO/NC

      Power supply

      10-30VDC

      Protection degree

      IP67

      Response time

      Max 8.2ms

      Hysteresis

      3-20%

      Repeat accuracy

      5%

      Load current

      200mA

      Residual voltage

      2.5V

      Consumption current

      25mA

      Protection circuit

      Surge, reverse polarity and short-circuit

      Indicator

      Yellow LED

      Ambient temp.

      -15-55

      Ambient RH

      35-95%

      Housing material

      Nickel plated brass

      Connection

      PVC Cable 2m

      FS50

      Housing size

      50*50*18mm

      Mode

      Through beam

      SN

      10m

      Light source

      Infrared LED 880nm

      Output

      NPN/PNP NO+NC

      Power supply

      10-30VDC

      Response time

      Max 3ms

      Repeat accuracy

      5%

      Load current

      200mA

      Residual voltage

      2.5V

      Consumption current

      25mA

      Protection circuit

      Surge ,reverse polarity and short-circuit

      Indicator

      Yellow LED

      Ambient temp.

      -15-55

      Ambient RH

      35-95%

      Protection degree

      IP65

      Housing material

      ABS/PC

      Connection

      PVC Cable 2m

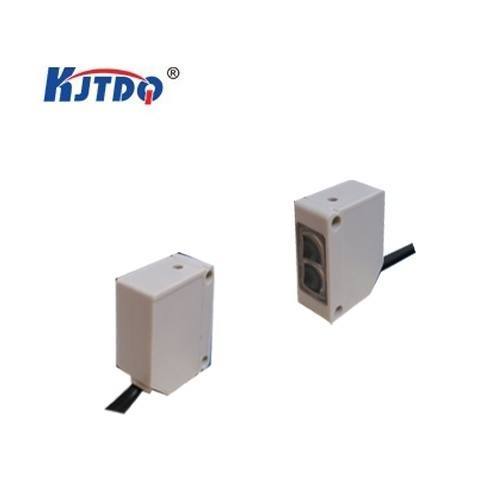

      FS30

      Housing size

      30*25*13

      Mode

      Though beam

      SN

      5m

      Light source

      Infrared LED 880nm

      Output

      NPN/PNP NO/NC/NO+NC

      Power supply

      10-30VDC

      Response time

      Max 3ms

      Hysteresis

      3-20%

      Repeat accuracy

      5%

      Load current

      200mA

      Residual voltage

      2.5V

      Consumption current

      25mA

      Protection circuit

      Surge and reverse polarity protection

      Indicator

      Yellow LED

      Ambient temp.

      -15-55

      Ambient RH

      35-95%

      Protection degree

      IP65

      Housing material

      ABS/PC

      Connection

      PVC Cable

      M18

      Housing size [mm]

      M18*63

      Thread size [mm]

      M18*1*45

      Mode

      Through beam

      SN [mm]

      5m,10m

      Light source

      Infrared LED 880nm

      Output

      NPN/PNP NO/NC/NO+NC

      Power supply

      10-30VDC

      Response time

      Max 8.2ms

      Repeat accuracy

      5%

      Load current [mA]

      200mA

      Residual voltage

      2.5V

      Consumption current [mA]

      25mA

      Protection circuit

      Surge, reverse polarity and short-circuit

      Indicator

      Yellow LED

      Ambient temp

      -15-55

      Ambient RH

      35-95%

      Protection degree

      IP67

      Housing material

      Nickel plated brass/ABS/PC

      Connection

      PVC Cable 2m

      Trade Information
      • FOB Port
      • ShangHai
      • Supply Ability
      • 50000pcs Per Month
      • Delivery Time
      • 1-2 Week
      • Sample Available
      • Yes
      • Sample Policy
      • Free samples available with shipping and taxes paid by the buyer
      • Packaging Details
      • standard carton package
      • Main Export Market(s)
      • Africa, Middle East, Western Europe, South America, Australia, Asia
      • Main Domestic Market
      • All India
      • Certifications
      • CE, RoHS
